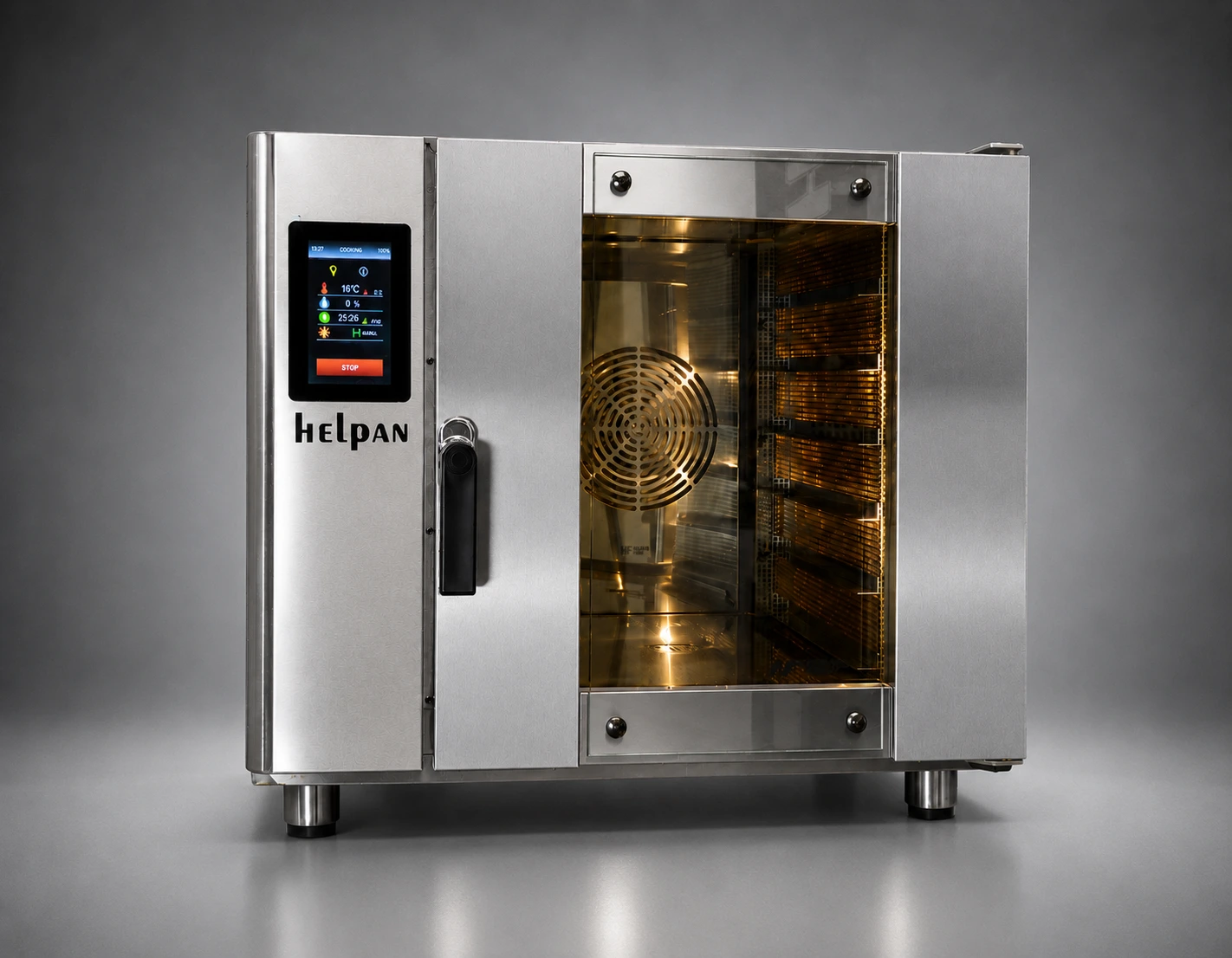

VENTO 6
professional electric oven for medium-big pastry and bakery laboratories and supermarkets. The ovens are made entirely in stainless steel with quality components.
With a 90mm space between trays, you can use the Vento ovens to bake taller products without affecting productivity or cooking results. By combining stainless steel, glass, screen printing and technology we hope to reconcile all aesthetic needs making Vento ovens integrate in a variety of production environments.
Specific functions: 2 speeds or inverter, automatic preheating, tempered double glass, Ventstop, steam, height-adjustable feet, very sturdy structure
Controls:
-

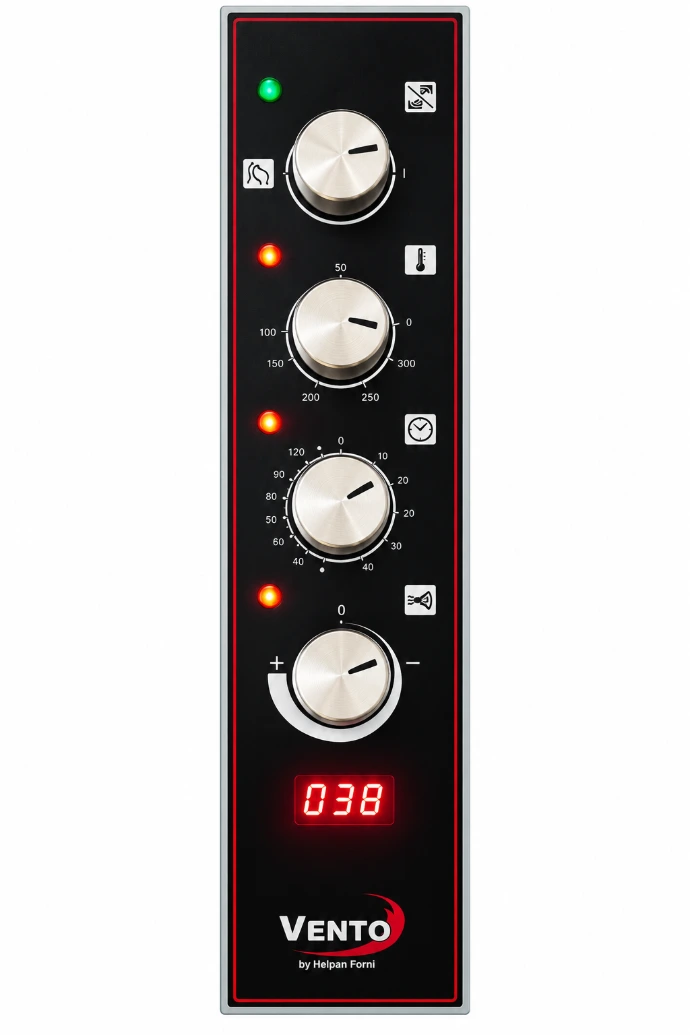

MANUAL (on/off, temperature, time, steam and controllable steam exhaust)
-

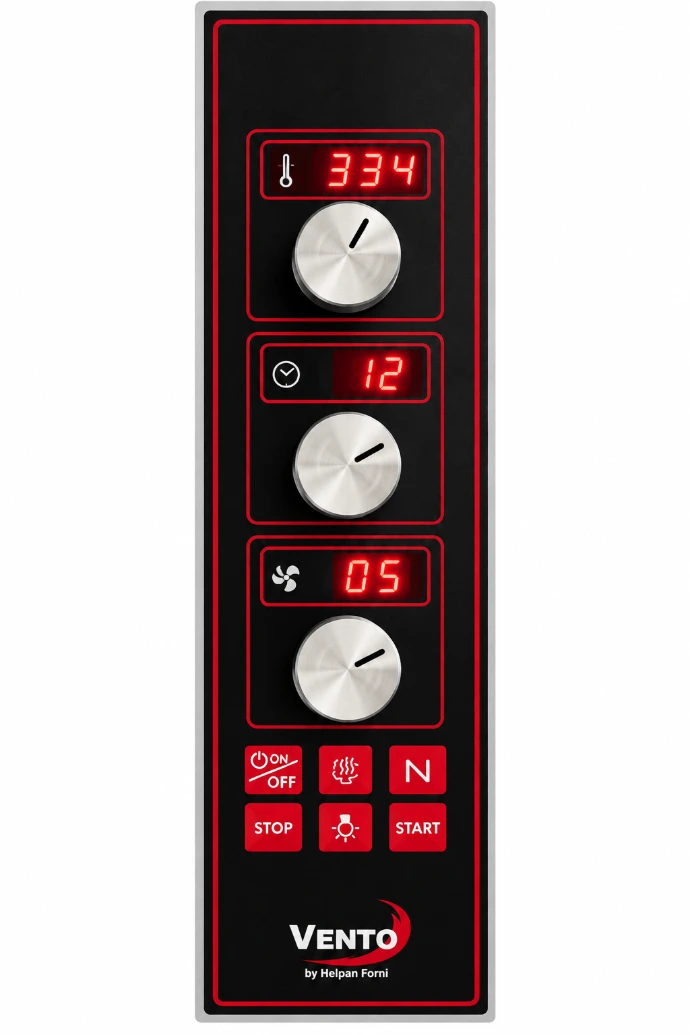

ELECTRONIC MANUAL CONTROLS (on/off, temperature, time, steam, steam exhaust + automatic preheating)
-

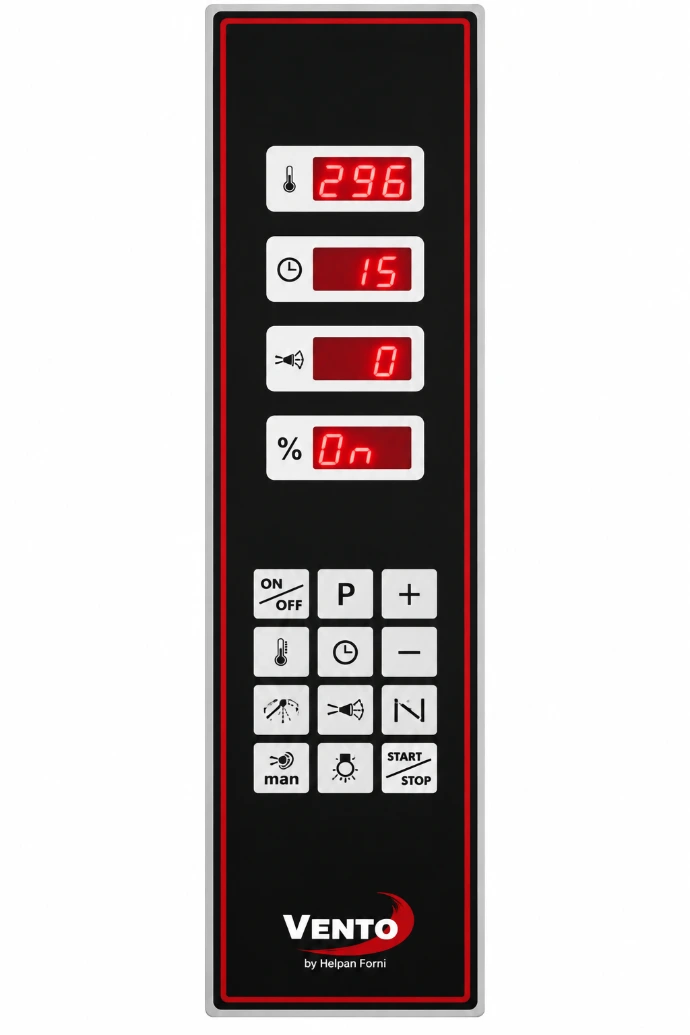

DIGITAL with 30 programs
-

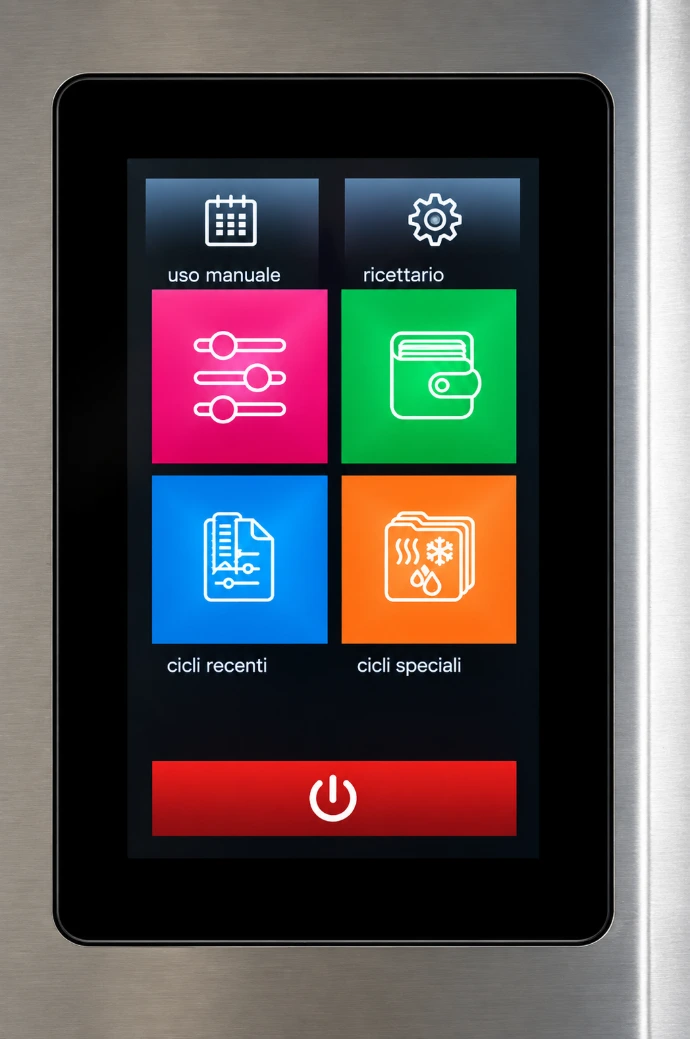

7 inch TOUCH SCREEN with intuitive commands and 90 programs
strenghts
![](/web/image/5161/Vento%2010%20artistic.jpg)
MODERN AND FUNCTIONAL DESIGN
The ovens are designed for the tray to be introduced from its narrow side reducing thus the surface covered by the hor air and ensuring an even baking.
Its particular shape make it an oven suitable for a variety of production environments and furnishing requirements.
Brushed stainlessteel structure, all glass door with black frame or stainless steel and transparent glass door, knob controls or brightly colored and very responsive touch screen for shops with open cooking or for medium-large pastry laboratories.
![](/web/image/5155/Ventola%20Vento%20-rs.jpg)
UNIFORM BAKING
![](/web/image/5146/steam%20Vento.png)
STEAM
All Vento ovens are equipped with direct steam injection to prevent the products from drying out and to always guarantee excellent cooking results
![](/web/image/5159/VENTO%204%20+%20VENTO%206%20+%20SUPPORTO.jpg)

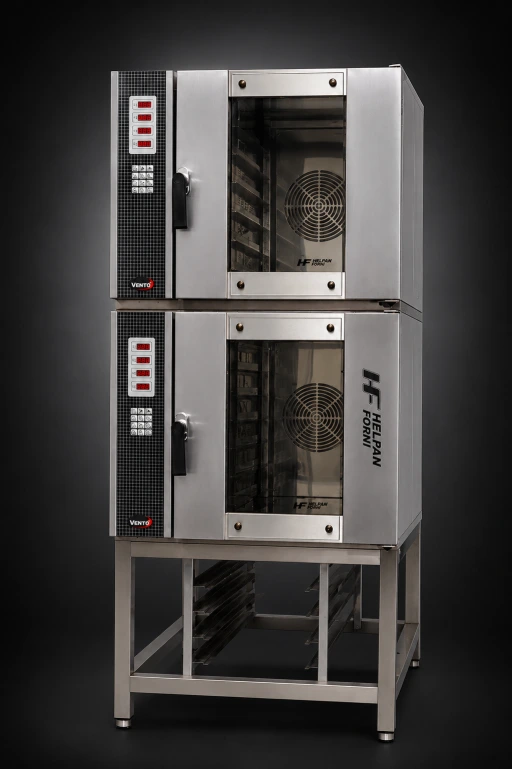

STACKED OVENS
Vento satisfies several needs: the structure of the ovens allows them to be assembled or placed one of the other according to the production requirements and space limitations. This enables you to increase the production capacity without changing the interior design.
Suggestions
Vento 4 + Vento 6 + 7 levels oven support
Vento 6 + Vento 6 + 4 levels oven support
Vento 10 + vento 4 + 4 levels oven support
Vento satisfies several needs: the structure of the ovens allows them to be assembled or placed one of the other according to the production requirements and space limitations. This enables you to increase the production capacity without changing the interior design.
technical advantages
![](/web/image/5143/touch%20Vento.jpg)
RELEVANT DETAILS
-
auto reverse motor for uniform baking
-
7 inch intuitive touch screen with 90 programs
-
lights on the door
-
Ventstop: immediate stop of the fan when the door is opened to reduce the amount of heat and steam going out of the cooking chamber
![](/web/image/5153/cerniere%20Vento%20-%202.jpg)
ROBUST STRUCTURE
internal and external structure in stainless steel AISI 430
tempered double glass door and snap-catch closing system that facilitates opening even with busy hands
![](/web/image/5162/vento%204.jpg)
EASY TECHNICAL MAINTENANCE
easy access to electric and electronic components
quality components to minimize the number of interventions in the life of the oven
easy to replace silicone gasket
SAVINGS
thanks to the installed power and to the high density pre-compressed rockwool panels than maintain the heat inside the baking chamber.
Steam is produced using the amount of water strictly necessary to avoid waste or high consumption.

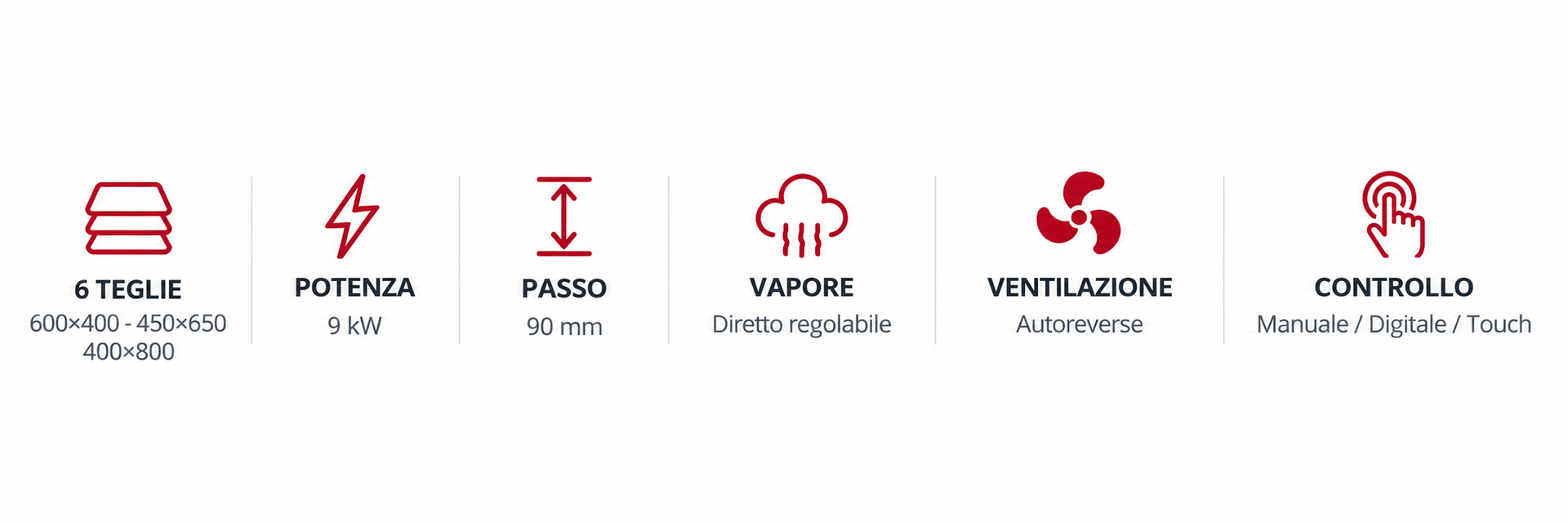

TECHNICAL DATA
VENTO 6 | 40X60 - 45X65 | 40X80 |
number of trays |
6 x
40x60 /45x65
|
6
x
40x80
|
external dimensions -
WxDxH
|
mm 875x1185x810 |
mm 875x1350x810
|
power supply | 380V - 3N - 50/60Hz |
380V - 3N - 50/60Hz
|
power | 9 kW | 9 kW |
motors | 1 with auto reverse | 1 with auto reverse |
space between trays | 90 mm | 90 mm |
water connection |
1 x G 3/4"
|
1 x G 3/4"
|
water pressure | 2-6 bar (200-600 kPa) |
2-6 bar
(200-600 kPa)
|
steam | adjustable | adjustable |
fan speed |
1 speed
2 speeds (mod. TF & TC) inverter (mod. TF & TC) |
1 speed 2 speeds (mod. TF & TC) inverter (mod. TF & TC) |
![Vento 6 teglie con accessori: cella di lievitazione e cappa di aspirazione forno a convezione 6 teglie 40x60 o 6 teglie 40x80 con lavaggio e panello comandi elettromeccanico con cella di lievitazione con manopole e cappa di aspirazione vapore in uscita dalla camera di cottura o dalla porta](/web/image/1747/RESIZE%20-%20VENTO%206%20R%20+%20HOTA%20+%20DOSPITOR.jpg)
ACCESSORIES
![Demo Logo](/web/image/1583/support%202.jpeg)
![Demo Logo](/web/image/2139/ruote%201.jpg)
KIT WHEELS
support/proofer
![Demo Logo](/web/image/1734/CAV.jpeg)
ASPIRATION HOOD
![Demo Logo](/web/image/1161/kit-doccia-per-forno-con-supporto-doccia-tubo-doccia.jpg)
